Y0010

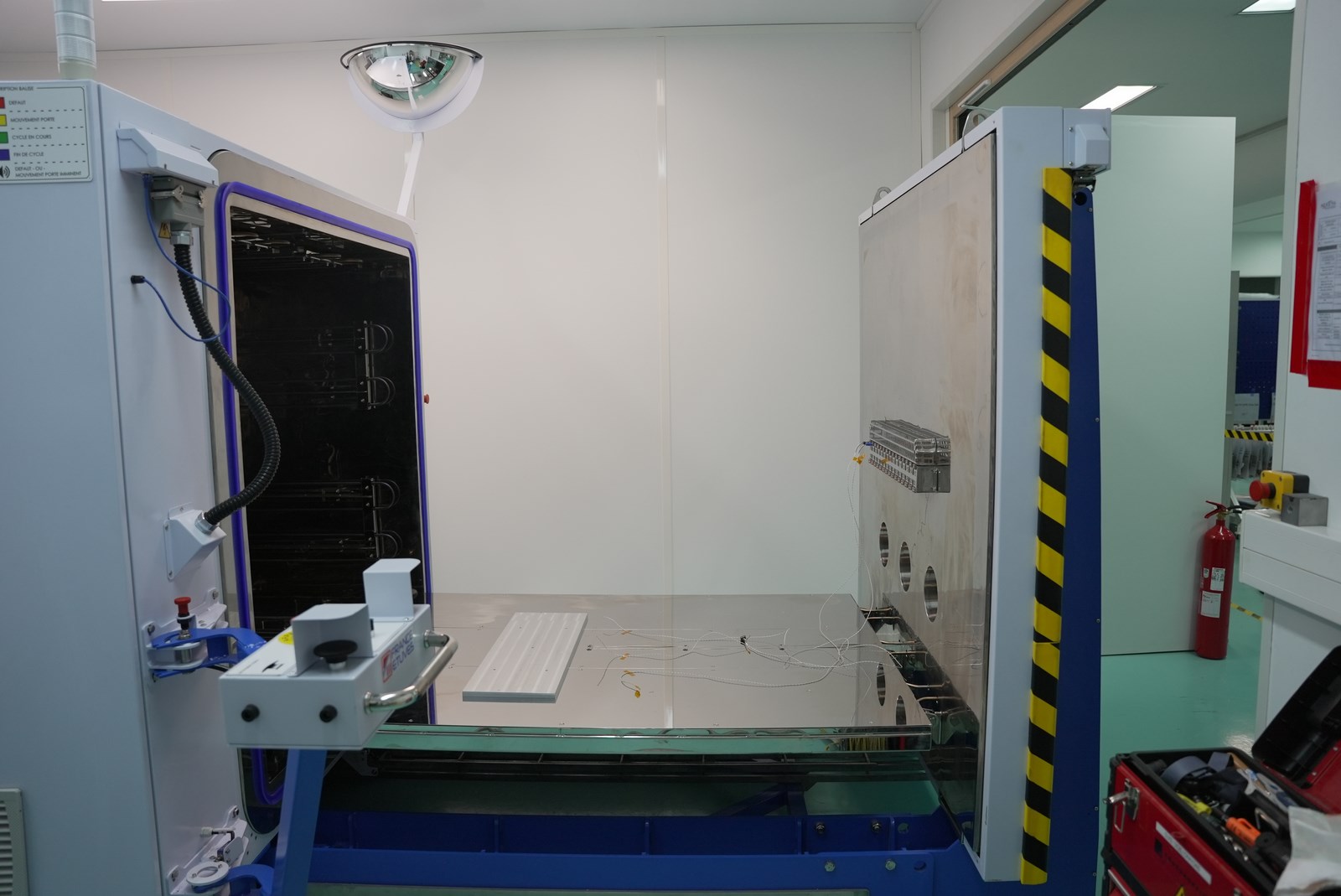

Oven characteristics:

XHF-SP 3724 vacuum chamber.

Vacuum level: 1.10-5 mbar with load, range 10-6 empty
Downtime to 1.10-5 mbar empty chamber: 2H

Maximum temperature: 150°C on the plate

Heating power: 24 KW + 12KW

Product to be degassed Solar panels Quantity: 12

Dimensions of a panel: 429 mm x 216 mm x 9 mm Surface area of ​​a panel = 0.092 m2 Weight of a panel = 500 g

The panels are made of Nida, carbon and equipped with cells, electrical harness and silicone.
The panels will be laid flat on the heating plate.

Utilisation de l'étuve: Dégazage de panneaux solaires pour nano ou micro satellites

.
