Range XUELT
Download the documentation
For all process up to a maximum of 120 °C :
Ideal for laboratories, industry and research.
- ⚡ Electronic
- 🏭 Metallurgy
- 🔬 Laboratories and industrial applications
- 🧪 Research and development
- 💨 Drying
- 🌡 Conservation à chaud
- 🧫 Hot preservation
- 🧱 Cooking / Aging / Hardening
- 🔥 Thermal tests
A robust construction meeting quality requirements.
High-performance ovens !
- 🔥 EXCELLENT INSULATION
Thermal insulation is provided by 70 mm of asbestos-free rock wool.
The outer sheets are separated from the inner tank. This eliminates any thermal bridging to guarantee: low surface temperatures, reduced electricity consumption, and rapid temperature rise.
- 🚪 DOOR SEALING
The door seal is guaranteed by a stabilized silicone seal and long service life. It's easily disassembled for quick and easy cleaning.
The door closes at two points. : maximum reliability.
- 🌡️ EFFICIENT HEATING
Heating is provided by sheathed stainless steel heating elements, ideally positioned in the airflow, allowing a uniform temperature rise.
- 📐 THE DESIGN
The inner tank is made of stainless steel with a glossy finish, corrosion resistant and suitable for processing products with a high water content.
The control panel is located on top of the oven, for minimal space requirements.
- 🧽 EASY CLEANING !
The corners of the inner tank are rounded, making tank cleaning easier.
- 🕳️ A Ø 20 mm access port (silicone plug supplied)
An access port centered on the left wall allows the passage of cables or probes.
- 💡 INTERIOR LIGHTING
The oven has an interior light point at automatic ignition when the door is opened.
✅ Supplied with the oven: 2 shelves with anti-tip supports !
Maximum load : up to 30 kg distributed !
- Multiple attachment levels are available for simplified loading and unloading.
- The spacing between the levels is 55mm.
Note: Shelves supporting a distributed weight of 60 kg are available as accessories.
Our priority: your satisfaction !
All our ovens are carefully tested before shipment !
- 🏭 Your oven is coming out of production.
- 📋 It's tested and verified by a qualified team.
- ✅ Your oven's conformity is validated according to your expectations.
- 📦 Your oven is then carefully packaged on our premises.
- 🚚 We ship it to your site.

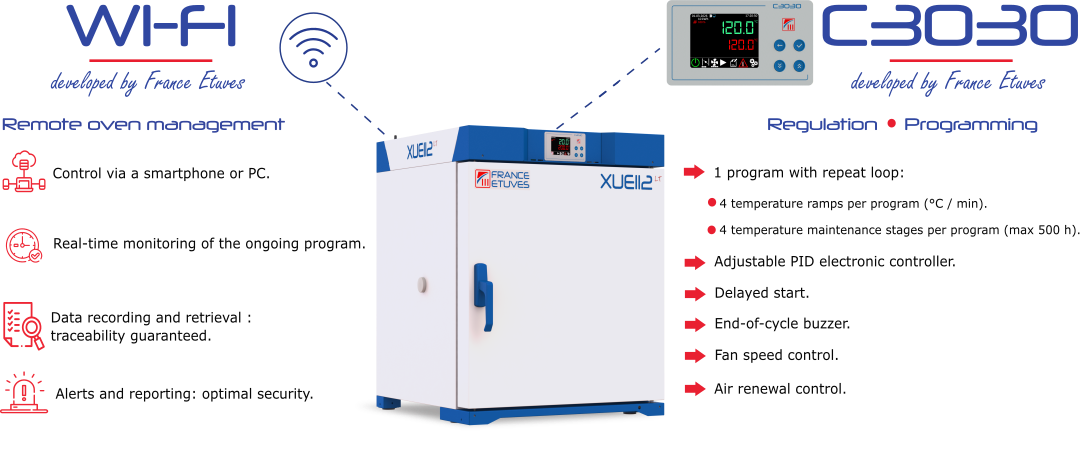

The C3030 temperature programmer : precision and reliability !
Developed by France Etuves !
📈 Programming :
- 1 program of 8 segments.
- 4 programmable temperature ramps (°C/min) and 4 temperature maintenance stages (max 500 h).
🔧 Caractéristiques :
- Display of the setpoint temperature, the measured temperature, and the heating power used.
- Displaying the date and time on a color screen.
- Measurement using a PT100 or TCJ probe.
- Multipoint RS485 Modbus communication allowing control of several ovens on the same network.
- PID electronic controller.
- Adding temperature correction at 2 separate temperatures (offsets).
- Automatic fault diagnosis and fault display.
⚙️ Functions :
- Delayed start.
- Repeat loop.
- End-of-cycle buzzer.
- Monitoring of the current program (steps and time remaining).
- Pausing or stopping the program.
- Control of temperature, air circulation speed and air exchange.
- PID adjustment.
- Protection thermostat settings
(TWW or TWB modes).
⚠️ Safety on board your oven !
Stay confident !
- Automatic shut-off of heating and ventilation when the door is opened.
- Setpoint Deviation Temperature (SDT): setpoint temperature monitoring mechanism within a set tolerance zone.
This is a visual and audible temperature monitoring alarm.
- The ovens are equipped with an electronic thermostat featuring 2 modes (TWW or TWB) according to DIN 12 880 standard.
💨 Forced horizontal ventilation :
Accelerating the drying process and homogenizing the temperature !
- Inside the oven, air is drawn in by the turbine.
- It's then heated by the heating elements..
- Then the hot air is blown into the usable volume.
- This hot air is expelled through an adjustable exhaust chimney at the rear of the oven..
- Fresh air enters the chamber at the level of the fan, thus generating air renewal in the oven.
ADJUSTABLE AIR RENEWAL !
The air outlet is equipped with a damper that can be controlled directly from the C6000 programmer and recorder.
Several opening levels are available to control the air exchange rate.
When the air recirculation damper is fully closed, the air circulates in a closed loop within your oven. This method is the most efficient for quickly preheating your oven.
Follow us on Linkedin !
Universal oven low temperature 32 liters XUELT032
| Model | XUELT032 |
|---|---|
| Chamber volume: | 32 litres |
| Performances : | |
|---|---|
| Standard maximum temperature : | 120 °C |
| Optional maximum temperature : | 120 °C |
| Dimensions : | |
|---|---|
| Chamber volume: | 32 litres |
| Interior Dimensions (L x P x H) : | 300 x 270 x 400 mm |
| Exterior Dimensions (L x P x H) : | 464 x 566 x 712 mm |
| Partials product models shleves | |
|---|---|
| Shelves quantity : | 2 delivered / 6 maximum |
| Shelves dimensions : | 270 x 240 mm |
| Max Load per Shelf / Total : | 30 / 60 kg |
| Power & Divers : | |
|---|---|
| Electrical Supply : | 230V ~1P 50/60Hz 4A |
| Standard power 120 °C : | 500 Watts |
| Number of door(s) : | 1 |
| Ventilation flow rate : | 120 m3/hour |
| Weight : | 39 kg |
Universal oven low temperature 58 liters XUELT058
| Model | XUELT058 |
|---|---|
| Chamber volume: | 58 litres |
| Performances : | |
|---|---|
| Standard maximum temperature : | 120 °C |
| Optional maximum temperature : | 120 °C |
| Dimensions : | |
|---|---|
| Chamber volume: | 58 litres |
| Interior Dimensions (L x P x H) : | 400 x 360 x 400 mm |
| Exterior Dimensions (L x P x H) : | 564 x 656 x 712 mm |
| Partials product models shleves | |
|---|---|
| Shelves quantity : | 2 delivered / 6 maximum |
| Shelves dimensions : | 370 x 330 mm |
| Max Load per Shelf / Total : | 30 / 60 kg |
| Power & Divers : | |
|---|---|
| Electrical Supply : | 230V ~1P 50/60Hz 4A |
| Standard power 120 °C : | 750 Watts |
| Number of door(s) : | 1 |
| Ventilation flow rate : | 120 m3/hour |
| Weight : | 50 kg |
Universal oven low temperature 112 liters XUELT112
| Model | XUELT112 |
|---|---|
| Chamber volume: | 112 litres |
| Performances : | |
|---|---|
| Standard maximum temperature : | 120 °C |
| Optional maximum temperature : | 120 °C |
| Dimensions : | |
|---|---|
| Chamber volume: | 112 litres |
| Interior Dimensions (L x P x H) : | 500 x 450 x 500 mm |
| Exterior Dimensions (L x P x H) : | 664 x 746 x 812 mm |
| Partials product models shleves | |
|---|---|
| Shelves quantity : | 2 delivered / 8 maximum |
| Shelves dimensions : | 470 x 420 mm |
| Max Load per Shelf / Total : | 30 / 60 kg |
| Power & Divers : | |
|---|---|
| Electrical Supply : | 230V ~1P 50/60Hz 4A |
| Standard power 120 °C : | 750 Watts |
| Number of door(s) : | 1 |
| Ventilation flow rate : | 120 m3/hour |
| Weight : | 65 kg |
Universal oven low temperature 225 liters XUELT225
| Model | XUELT225 |
|---|---|
| Chamber volume: | 225 litres |
| Performances : | |
|---|---|
| Standard maximum temperature : | 120 °C |
| Optional maximum temperature : | 120 °C |
| Dimensions : | |
|---|---|
| Chamber volume: | 225 litres |
| Interior Dimensions (L x P x H) : | 500 x 450 x 1000 mm |
| Exterior Dimensions (L x P x H) : | 664 x 746 x 1312 mm |
| Partials product models shleves | |
|---|---|
| Shelves quantity : | 2 delivered / 17 maximum |
| Shelves dimensions : | 470 x 420 mm |
| Max Load per Shelf / Total : | 30 / 120 kg |
| Power & Divers : | |
|---|---|
| Electrical Supply : | 230V ~1P 50/60Hz 6A |
| Standard power 120 °C : | 1000 Watts |
| Number of door(s) : | 1 |
| Ventilation flow rate : | 240 m3/hour |
| Weight : | 84 kg |
Universal oven low temperature 343 liters XUELT343
| Model | XUELT343 |
|---|---|
| Chamber volume: | 343 litres |
| Performances : | |
|---|---|
| Standard maximum temperature : | 120 °C |
| Optional maximum temperature : | 120 °C |
| Dimensions : | |
|---|---|
| Chamber volume: | 343 litres |
| Interior Dimensions (L x P x H) : | 700 x 700 x 700 mm |
| Exterior Dimensions (L x P x H) : | 864 x 1092 x 1012 mm |
| Partials product models shleves | |
|---|---|
| Shelves quantity : | 2 delivered / 11 maximum |
| Shelves dimensions : | 670 x 670 mm |
| Max Load per Shelf / Total : | 30 / 100 kg |
| Power & Divers : | |
|---|---|
| Electrical Supply : | 230V ~1P 50Hz 10A |
| Standard power 120 °C : | 1500 Watts |
| Number of door(s) : | 1 |
| Ventilation flow rate : | 290 m3/hour |
| Weight : | 123 kg |
Universal oven low temperature 490 liters XUELT490
| Model | XUELT490 |
|---|---|
| Chamber volume: | 490 litres |
| Performances : | |
|---|---|
| Standard maximum temperature : | 120 °C |
| Optional maximum temperature : | 120 °C |
| Dimensions : | |
|---|---|
| Chamber volume: | 490 litres |
| Interior Dimensions (L x P x H) : | 700 x 700 x 1000 mm |
| Exterior Dimensions (L x P x H) : | 864 x 1092 x 1312 mm |
| Partials product models shleves | |
|---|---|
| Shelves quantity : | 2 delivered / 17 maximum |
| Shelves dimensions : | 670 x 670 mm |
| Max Load per Shelf / Total : | 30 / 160 kg |
| Power & Divers : | |
|---|---|
| Electrical Supply : | 230V ~1P 50Hz 10A |
| Standard power 120 °C : | 1500 Watts |
| Number of door(s) : | 1 |
| Ventilation flow rate : | 290 m3/hour |
| Weight : | 148 kg |
Universal oven low temperature 686 liters XUELT686
| Model | XUELT686 |
|---|---|
| Chamber volume: | 686 litres |
| Performances : | |
|---|---|
| Standard maximum temperature : | 120 °C |
| Optional maximum temperature : | 120 °C |
| Dimensions : | |
|---|---|
| Chamber volume: | 686 litres |
| Interior Dimensions (L x P x H) : | 700 x 700 x 1400 mm |
| Exterior Dimensions (L x P x H) : | 864 x 1092 x 1712 mm |
| Partials product models shleves | |
|---|---|
| Shelves quantity : | 2 delivered / 25 maximum |
| Shelves dimensions : | 670 x 670 mm |
| Max Load per Shelf / Total : | 30 / 160 kg |
| Power & Divers : | |
|---|---|
| Electrical Supply : | 230V ~1P 50Hz 10A |
| Standard power 120 °C : | 2000 Watts |
| Number of door(s) : | 1 |
| Ventilation flow rate : | 580 m3/hour |
| Weight : | 178 kg |
Universal oven low temperature 980 liters XUELT980
| Model | XUELT980 |
|---|---|
| Chamber volume: | 980 litres |
| Performances : | |
|---|---|
| Standard maximum temperature : | 120 °C |
| Optional maximum temperature : | 120 °C |
| Dimensions : | |
|---|---|
| Chamber volume: | 980 litres |
| Interior Dimensions (L x P x H) : | 1000 x 700 x 1400 mm |
| Exterior Dimensions (L x P x H) : | 1164 x 1092 x 1717 mm |
| Partials product models shleves | |
|---|---|
| Shelves quantity : | 2 delivered / 25 maximum |
| Shelves dimensions : | 970 x 670 mm |
| Max Load per Shelf / Total : | 30 / 180 kg |
| Power & Divers : | |
|---|---|
| Electrical Supply : | 230V ~1P 50Hz 16A |
| Standard power 120 °C : | 3000 Watts |
| Number of door(s) : | 2 |
| Ventilation flow rate : | 580 m3/hour |
| Weight : | 258 kg |
| Range XUELT | XUELT032 | XUELT058 | XUELT112 | XUELT225 | XUELT343 | XUELT490 | XUELT686 | XUELT980 | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
| Performances | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Temperature range : | Ambient temperature + 10 °C à 120 °C | ||||||||
| Standard maximum temperature : | 120 °C | ||||||||
| Chamber dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Chamber volume: | dm3 | 32 | 58 | 112 | 225 | 343 | 490 | 686 | 980 |
| Width : | mm | 300 | 400 | 500 | 500 | 700 | 700 | 700 | 1000 |
| Depth : | mm | 270 | 360 | 450 | 450 | 700 | 700 | 700 | 700 |
| Height : | mm | 400 | 400 | 500 | 1000 | 700 | 1000 | 1400 | 1400 |
| Exterior Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Exterior Chamber Volume : | m3 | 0.19 | 0.26 | 0.4 | 0.65 | 0.95 | 1.24 | 1.62 | 2.18 |
| Width : | mm | 464 | 564 | 664 | 664 | 864 | 864 | 864 | 1164 |
| Depth : | mm | 566 | 656 | 746 | 746 | 1092 | 1092 | 1092 | 1092 |
| Height : | mm | 712 | 712 | 812 | 1312 | 1012 | 1312 | 1712 | 1717 |
| Shelves: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Delivered / Maximum : | 2 / 6 | 2 / 6 | 2 / 8 | 2 / 17 | 2 / 11 | 2 / 17 | 2 / 25 | 2 / 25 | |
| Dimensions L / P : | mm | 270 x 240 | 370 x 330 | 470 x 420 | 470 x 420 | 670 x 670 | 670 x 670 | 670 x 670 | 970 x 670 |
| Maximum weight / Total : | kg | 30 / 60 | 30 / 60 | 30 / 60 | 30 / 120 | 30 / 100 | 30 / 160 | 30 / 160 | 30 / 180 |
| Other informations | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Number of door(s) : | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | |
| Window L / l (option) | mm | 130x200 | 200x200 | 180x350 | 350x350 | 350x350 | 350x550 | 350x550 | 180x350 (x2) |
| Weight : | kg | 39 | 50 | 65 | 84 | 123 | 148 | 178 | 258 |
| Electrical data | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Standard power 120 °C : | Watts | 500 | 750 | 750 | 1000 | 1500 | 1500 | 2000 | 3000 |
| Electrical Supply : | volts | 230V ~1P 50/60Hz 4A | 230V ~1P 50/60Hz 4A | 230V ~1P 50/60Hz 4A | 230V ~1P 50/60Hz 6A | 230V ~1P 50Hz 10A | 230V ~1P 50Hz 10A | 230V ~1P 50Hz 10A | 230V ~1P 50Hz 16A |
Nous nous réservons le droit d'apporter toute modification technique sans préavis.
All the options of the range XUELT
| Reference | Image | Description |
|---|---|---|
| OG9006 |  |
Door with viewing window You will be able to see and control inside the oven. The surface temperature around the window and the power consumption will be higher. The temperature uniformity will be affected. |
| OG9008 |  |
Digital weekly program timer Set times of operation of the oven for each day of the week. Ventilation is stopped only when the oven temperature has fallen to 80°C to prevent damage to the fans. |
| OG9030 |  |
Factory calibration certificate 1 point 1 temperature Measurement in the center of the working chamber at 105°C, 150°C or 200°C (according to FD X 15-140). |
| OG9031 |  |
Homogeneity control 1 temperature (105,150 or 200°C) Measurement at 9 or 15 points in the working chamber at 105°C, 150°C or 200°C (according to FD X 15-140). |
| OG9034 |  |
Air cooling extractor Enables cooling the temperature in the working volume at the end of the cycle. |
| OG9045 |  |
Air outlet extractor Evacuates the exhaust air into a duct system. |
| OG9047 |  |
Access port diameter 60 mm Centered on the left side. Allows the passage of cables or sensors. |
| OG9049 |  |
Temperature profiler and recorder Creates up to 100 programs with 25 steps each. Recording of measured temperatures. Large graphical display. Real-time monitoring of temperatures. 3 extra channels. With USB and RJ45 plugs. |
| OG9058 |  |
Key lock door |
| OG9073 |  |
Ethernet RJ45 communication module Interface connected to the oven controller(C3030, C6000 or C6060). The user can control the controller with a web application included in the interface. It can also send data to a cloud. |
| OG9074 |  |
Tower 3 lights and buzzer Green: Cycle in progress Yellow: Cycle finished Red: Alarm Buzzer: Alarm / Cycle finished |
All the accessories for the range XUELT
| Reference | Image | Description |
|---|---|---|
| AG9001 |  |
Shelf with guide bars Made of chromed steel. Max distributed loading of 30 kg. With 2 anti-tilting guide bars. |
| AG9002 |  |
Reinforced shelf 60 kg with guide bars Made of chromed steel. Max distributed loading of 60 kg. With 2 anti-tilting guide bars. |
| AG9003 |  |
Recovery tray Made of stainless steel. Easy to clean. Their height of 20 mm collects liquids or other substances during your process. |
| AG9004 |  |
Stacking kit Only for XU032 to XU112. To stack 2 ovens same size. |
| AG9005 |  |
Subframe with feet Elevates the oven for a more comfortable loading. Adjustable feet in height. |
| AG9006 |  |
Subframe with castors Elevates the oven for a more comfortable loading. 4 castors, two with brakes. |
| AG9013 |  |
Data logger with 2 channels (software included) Saves the temperatures measured by 2 mobile sensors. Record temperatures measured by 2 mobile sensors. Box with magnetic fixing<br> Dimensions : 93.2 x 65.2 x 30.5 mm Weight: 115 g<br> Display : LCD screen 2 lines | ABS IP54<br> Communication PC : 1 micro-USB Power supply by battery AA lithium 3.6V<br> Tc entries : female connector micro-USB, thermocouples (K, J, T, N, S)<br> Recording from every 1s to 24h Autonomy: 4 years (for 1 measure every 15 monutes) Software and cable included |
| AG9014 |  |
Portable paperless recorder with graphical screen 4 channels Color graphical display for real monitoring of temperature changes. With USB and RJ45 plugs, and 4 connectors for mobile sensors. |
| AG9016 |  |
Thermocouple probe Length 3 m, with plug |
| AG9041 |  |
Frame equipped with 4 castors |
