France Etuves

E464

E464
Technical Data
  • Field of Activity Composite
  • Chamber Volume 76 m3
  • Max temperature 200 °C
This modular oven is used for the curing of filament wiring tubes made of glass fibre with epoxy resin placed on mandrels in rotation during 2 to 3 hours at 150°C for the manufacturing of composites insulators.
    Technical Data:
  • Volume: 76 000 L
  • Maximum Temperature: 200°C
  • Inner Casing Size: 3500 x 12600 x 1800 mm
  • Wattage: 280 000 Watts
E464 E464_1
E464 E464_2

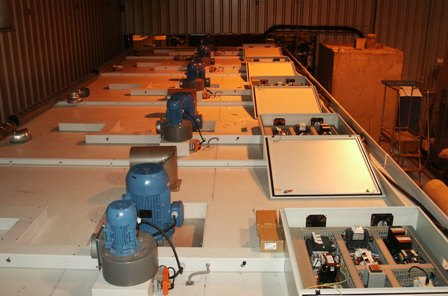

  • 6 sections
  • 1 ventilation fan and 1 air change extractor per section
  • An intelligent interface makes easier the control of the oven
  • Inner lighting
  • Mandrels loading on motorized trucks, controlled by a remote control
  • A drive system by gear motor assures the rotation of the mandrels
    • E464 E464_2
