France Etuves
D208

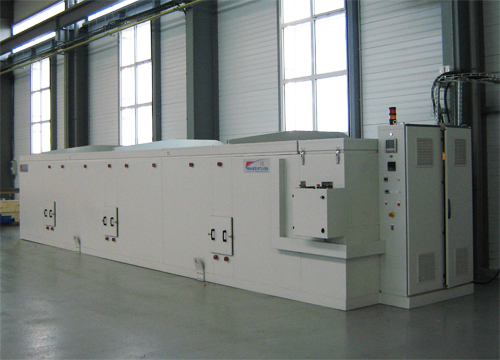

Etuve coffre de polymérisation de composite.
Technical Data
- Field of Activity Aéronautique
- Chamber Volume 14 m3
- Max temperature 250 °C
Top loading oven for curing at 200°C a resin injected under vacuum in a 8 tons mould.
In this 14m3 volume, AEROFORME manufactures large dimension of composite cornices for the latest Airbus A380.
- Technical Data:
- Volume: 14 m3
- Maximum Temperature: 250°C
- Inner Casing Size: 1,4 x 8,2 x 1,2 m
- Wattage: 256 kWatts

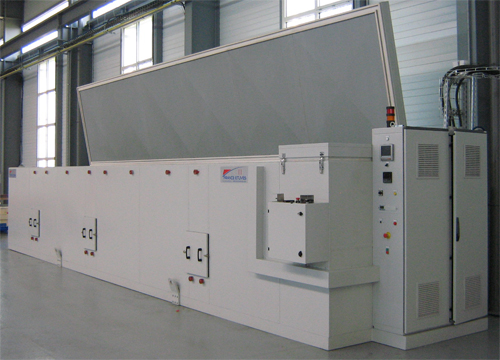

- Opening by electric actuators
- Recording of the set point temperature and of the measured one
