D207

Technical Data

Field of Activity Composite
Chamber Volume 68 m³
Max temperature 250 °C

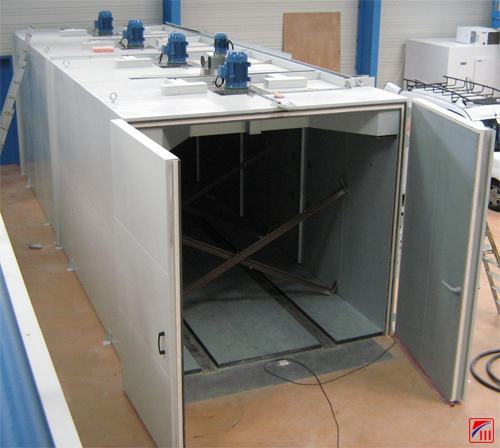

LOIRE MODELAGE manufactures in this 68m³ oven, composite moulds. The volume inside is modular with take-down walls.

Volume: 68 m³
Maximum Temperature: 250°C
Inner Casing Size: 3 x 9 x 2,5 m
Engine: 4 x 7,5 kW
Wattage: 122 000 Watts

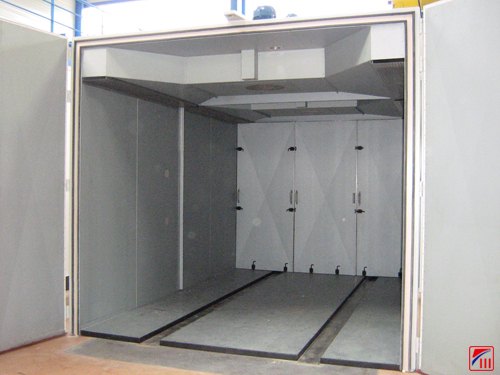

On the right picture, you can see our take-down walls. The user can decide to use only one set of engine / heating element inside the oven for their polymerization. With take-down walls, we save energy cost.
